Plan 2821

Home Shop1-4Plan 2821
Enlarge Images

Plan 2821

$0.00

Plan Package Info Click Here

Please review our shipping options before choosing a shipping method. Shipping is calculated per plan, and not per total order.

Need plans faster? Consider our PDF or CAD options. You’ll receive the plans faster, and there is no shipping charge.

Categories: 1-4, 2x6-2 ($75), CARRIAGE HOUSES, ML-3 ($70), RRR-2 ($75).
Share
  • Description

Description

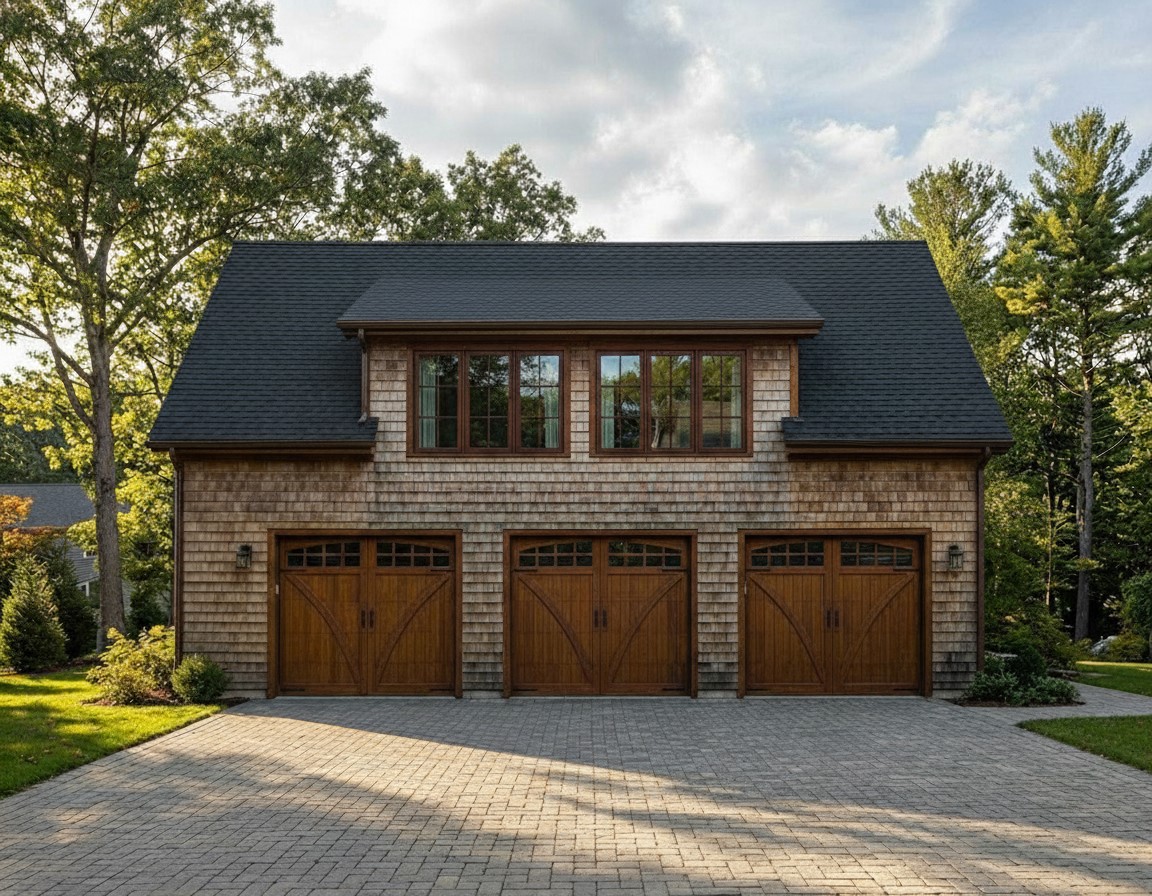

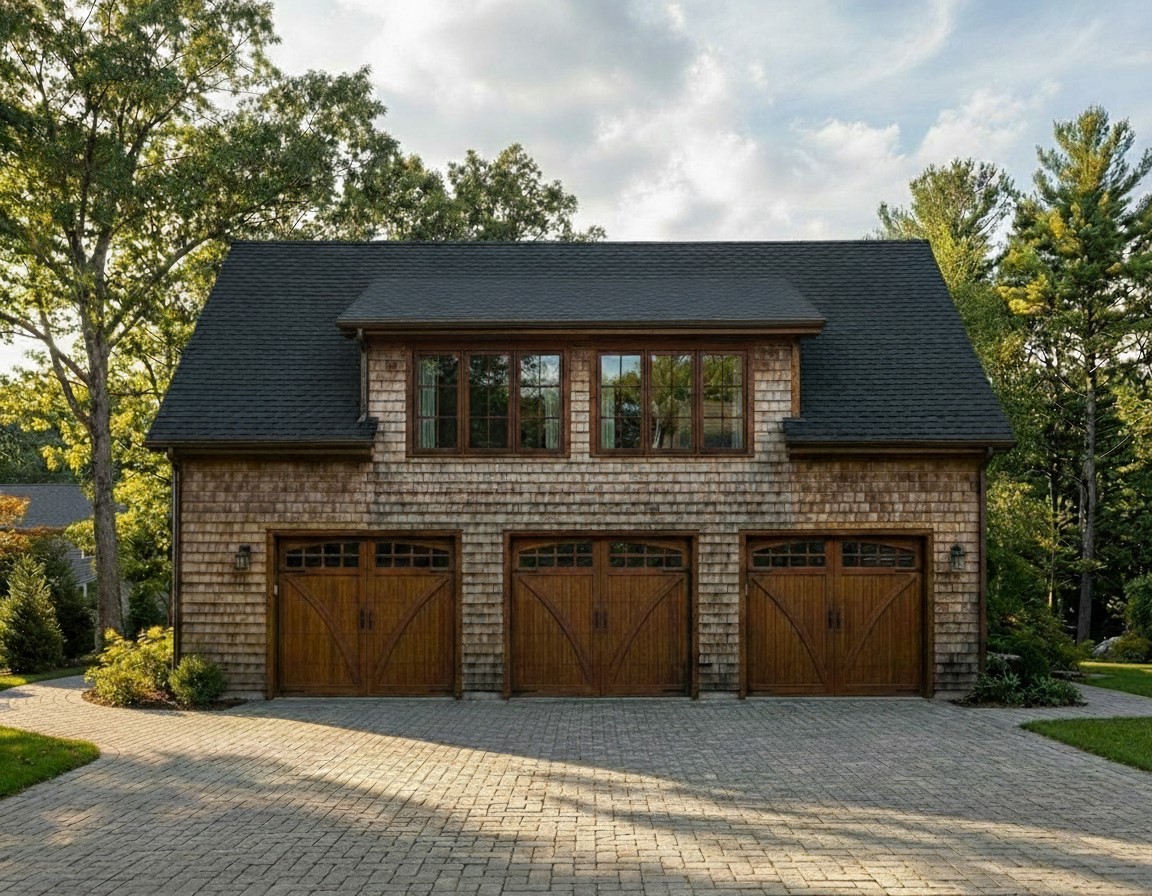

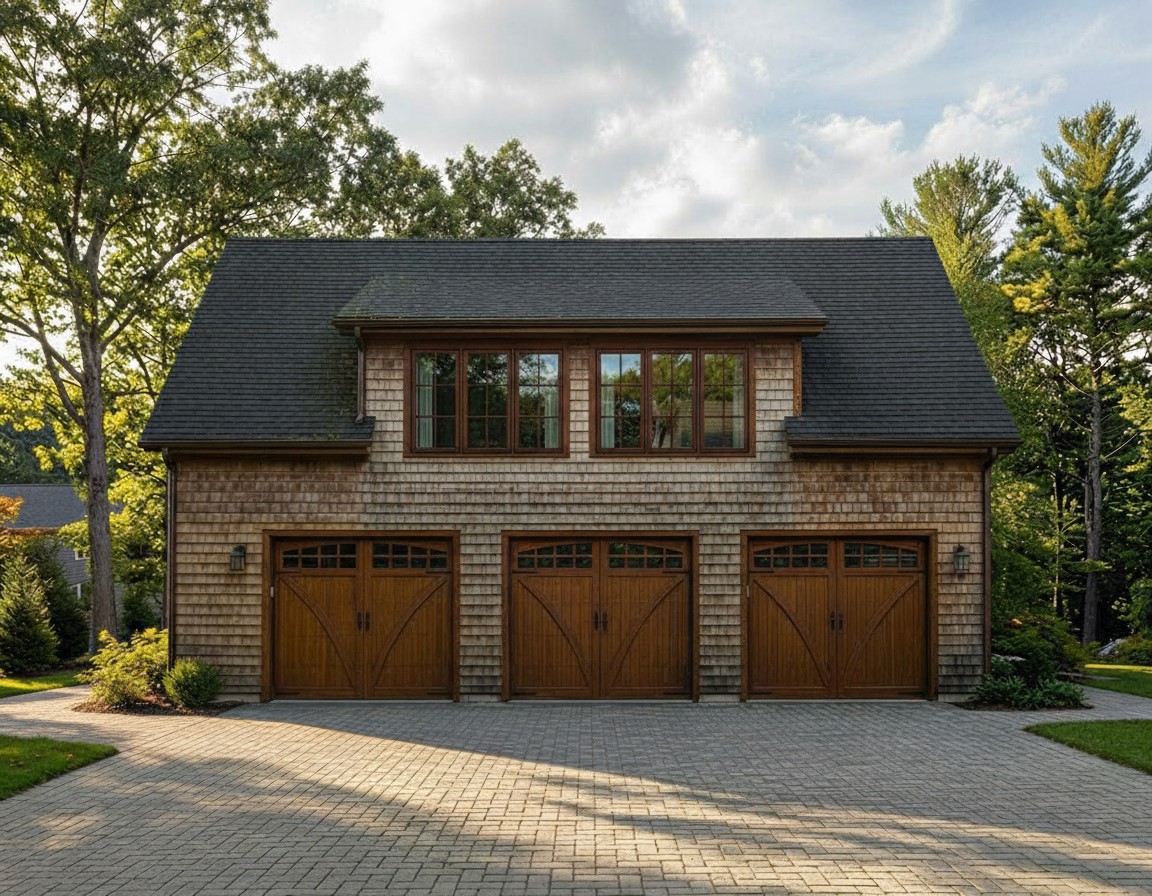

Three car carriage house plan with open floor plan

Details

Beds

1

Sqft

741

Baths Full

1

Levels

2

Sqft Floors

Second Floor:741

Exterior Wall

2x4

Roof Framing

Truss

House Dimensions

Width: 40'0"

Depth: 22'0"

Approx. Height: 25'2"

Roof Pitch

12/12 Main

5/12 Shed Roof

Ceiling Height

First Floor 9-0

Second Floor 8-0

Features

Foundation

Footing and Foundation Wall

Garage

Three car+
Front-entry
Garage Apartment

Bedroom Features

Upstairs master bedroom

Kitchen Features

Island

Interior Features

Open floor plan
