Plan 202302

Home Shop1-6Plan 202302

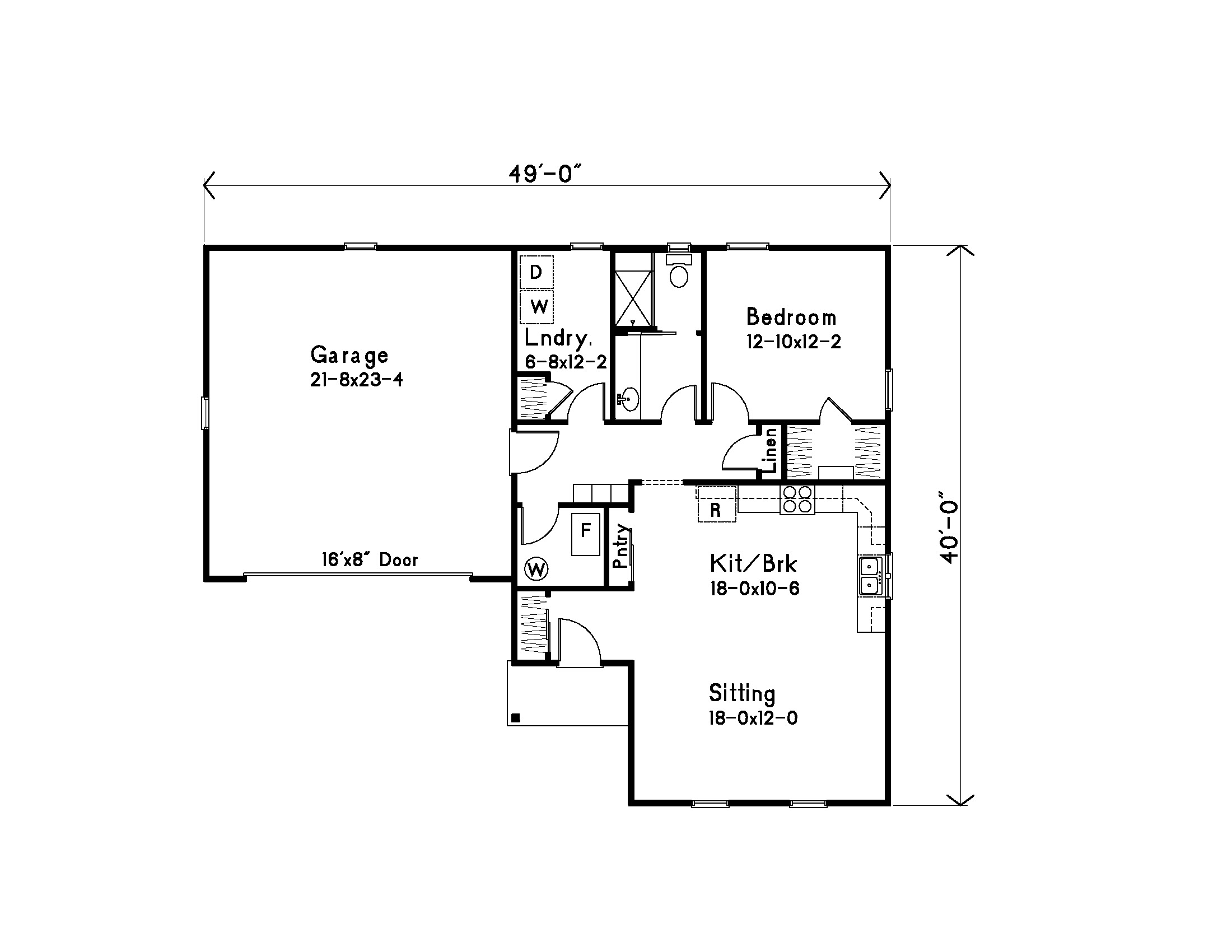

Plan 202302

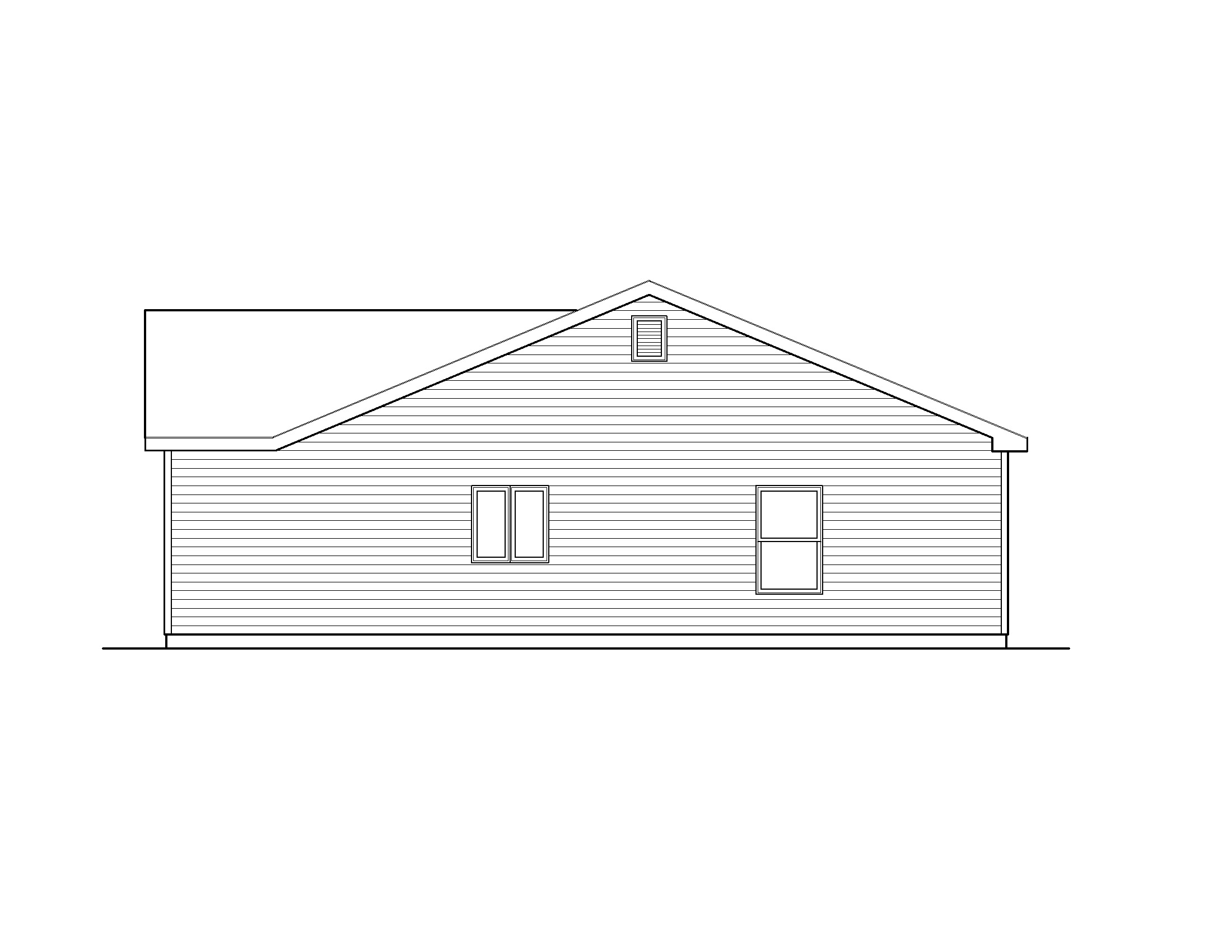

Plan 202302 - Image 2

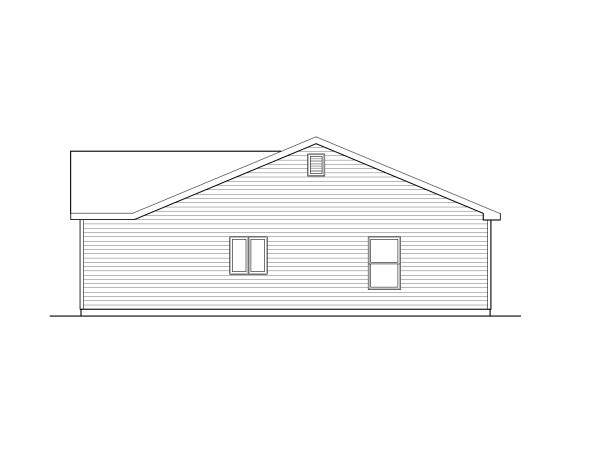

Plan 202302 - Image 3

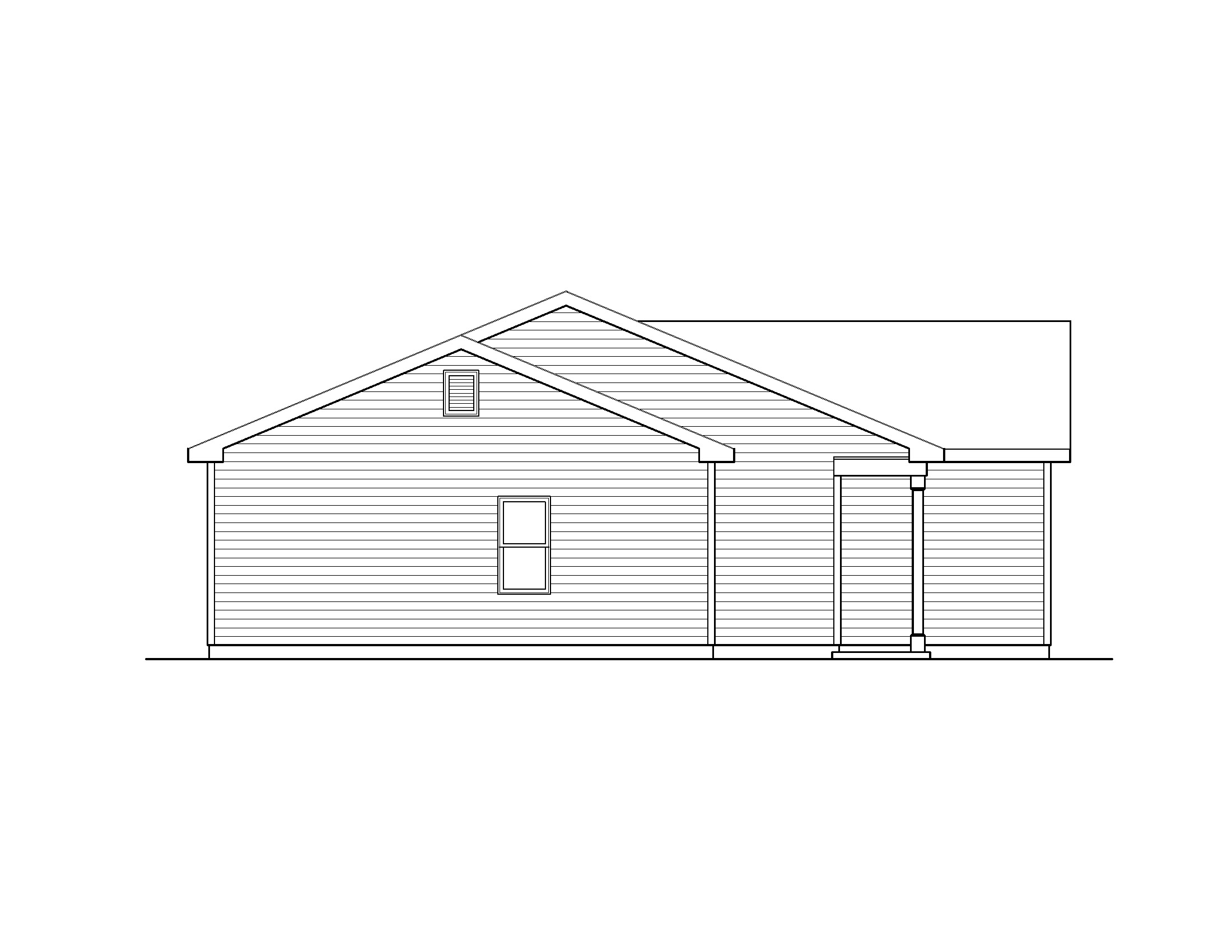

Plan 202302 - Image 4

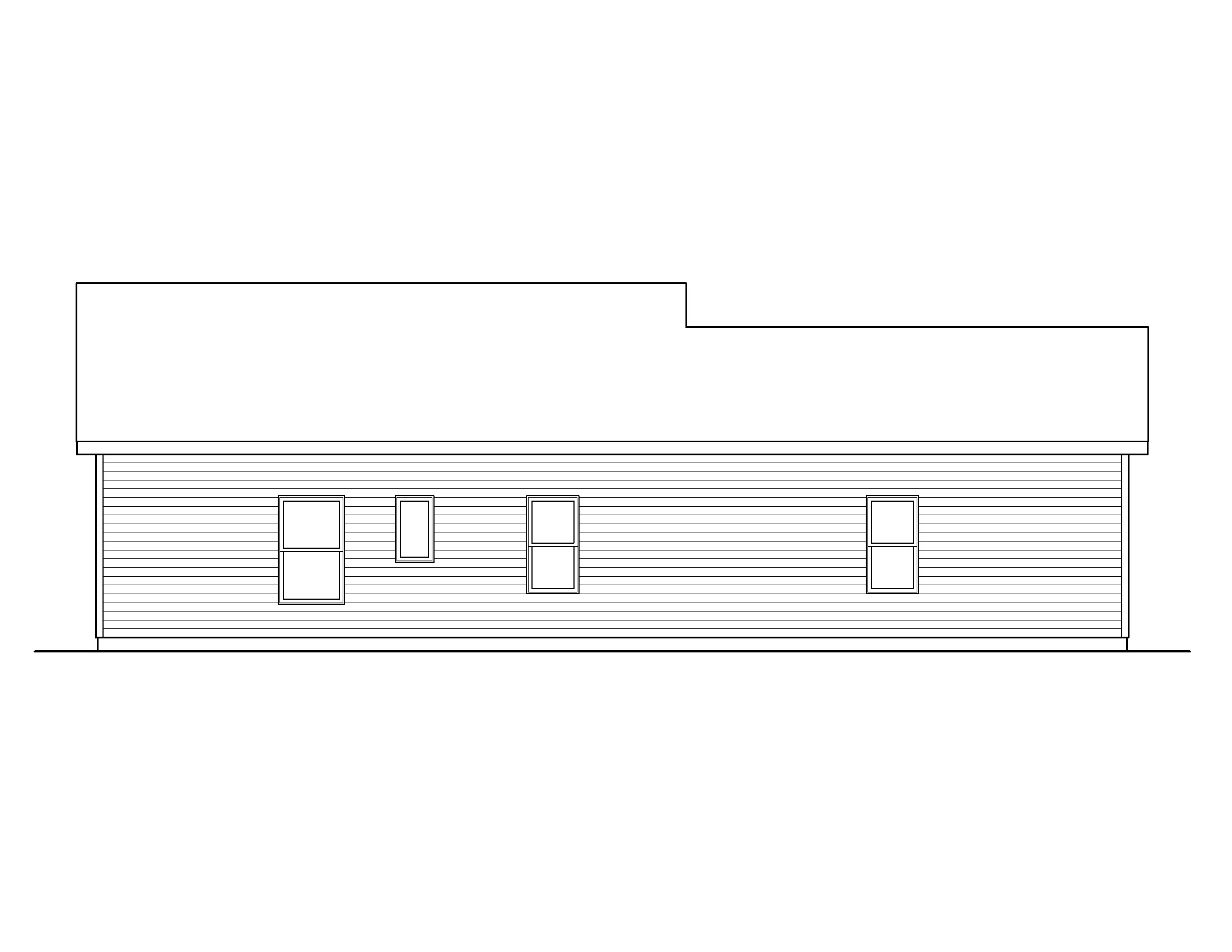

Plan 202302 - Image 5
Enlarge Images

Plan 202302

$0.00

Single story garage apartment for simple living.

Plan Package Info Click Here

Please review our shipping options before choosing a shipping method. Shipping is calculated per plan, and not per total order.

Need plans faster? Consider our PDF or CAD options. You’ll receive the plans faster, and there is no shipping charge.

Categories: 1-6, 2x6-2 ($75), CARRIAGE HOUSES, ML-4 ($80), RRR-2 ($75).
Share
  • Description

Description

Single story garage apartment for simple living.

Details

Beds

1

Sqft

996

Baths Full

1

Levels

1

Sqft Floors

First Floor:996

Exterior Wall

2x6

Roof Framing

Truss

House Dimensions

Width: 49'0"

Depth: 40'0"

Approx. Height: 17'7"

Roof Pitch

5/12 Main Roof

7/12 Front Gable

Ceiling Height

First Floor 9-0

Features

Foundation

Slab on Grade

Garage

Two car
Front-entry
Garage Apartment

Bedroom Features

Main floor master bedroom
Walk-in closet

Interior Features

Laundry

Exterior Features

Covered front porch
