Plan 1901

Home Shop1-4Plan 1901
Enlarge Images

Plan 1901

$0.00

Plan Package Info Click Here

Please review our shipping options before choosing a shipping method. Shipping is calculated per plan, and not per total order.

Need plans faster? Consider our PDF or CAD options. You’ll receive the plans faster, and there is no shipping charge.

Categories: 1-4, CARRIAGE HOUSES, ML-3 ($70), RRR-2 ($75).
Share
  • Description

Description

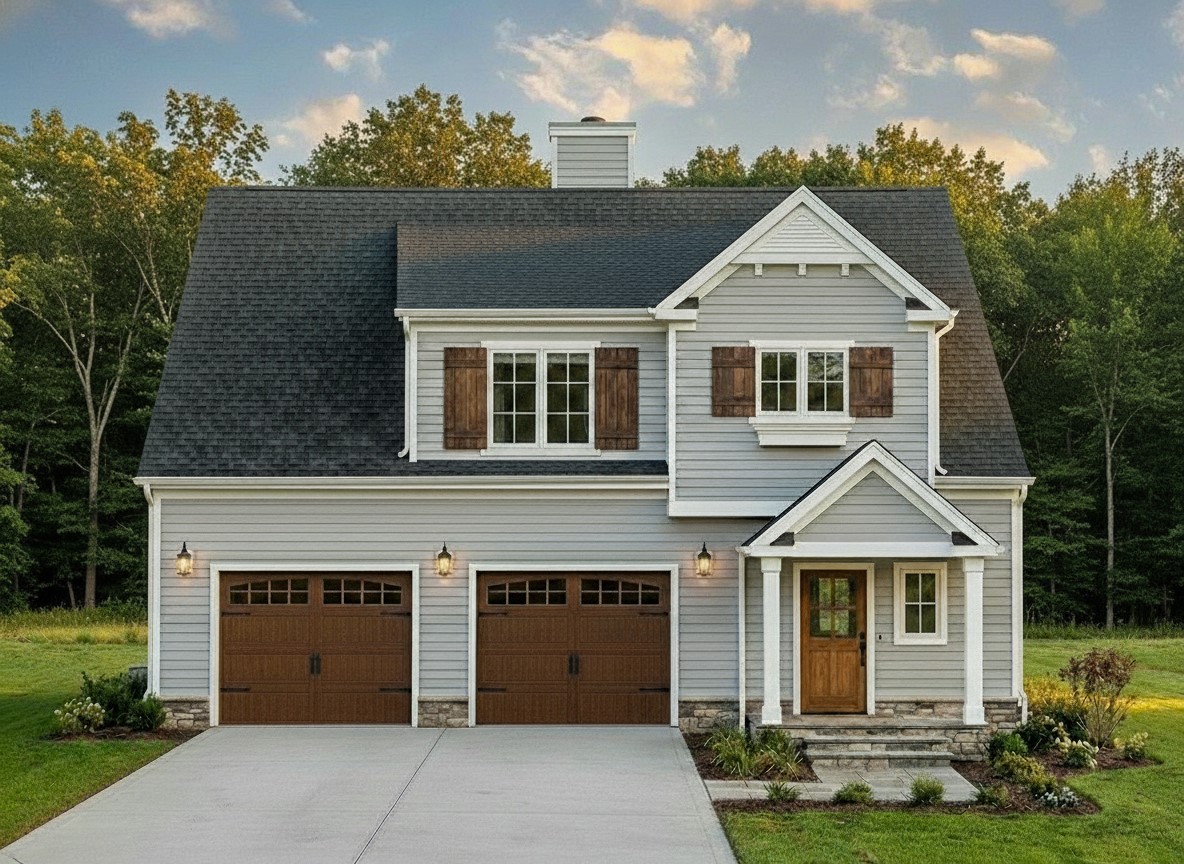

Very practical two car garage apartment. Plan features one bedroom, one and one half baths, storage space, open floor plan and a fireplace. All the luxuries of a small house plan in a cariage house arrangement.

Details

Beds

1

Sqft

1155

Baths Full

1

Baths Half

1

Levels

2

Sqft Floors

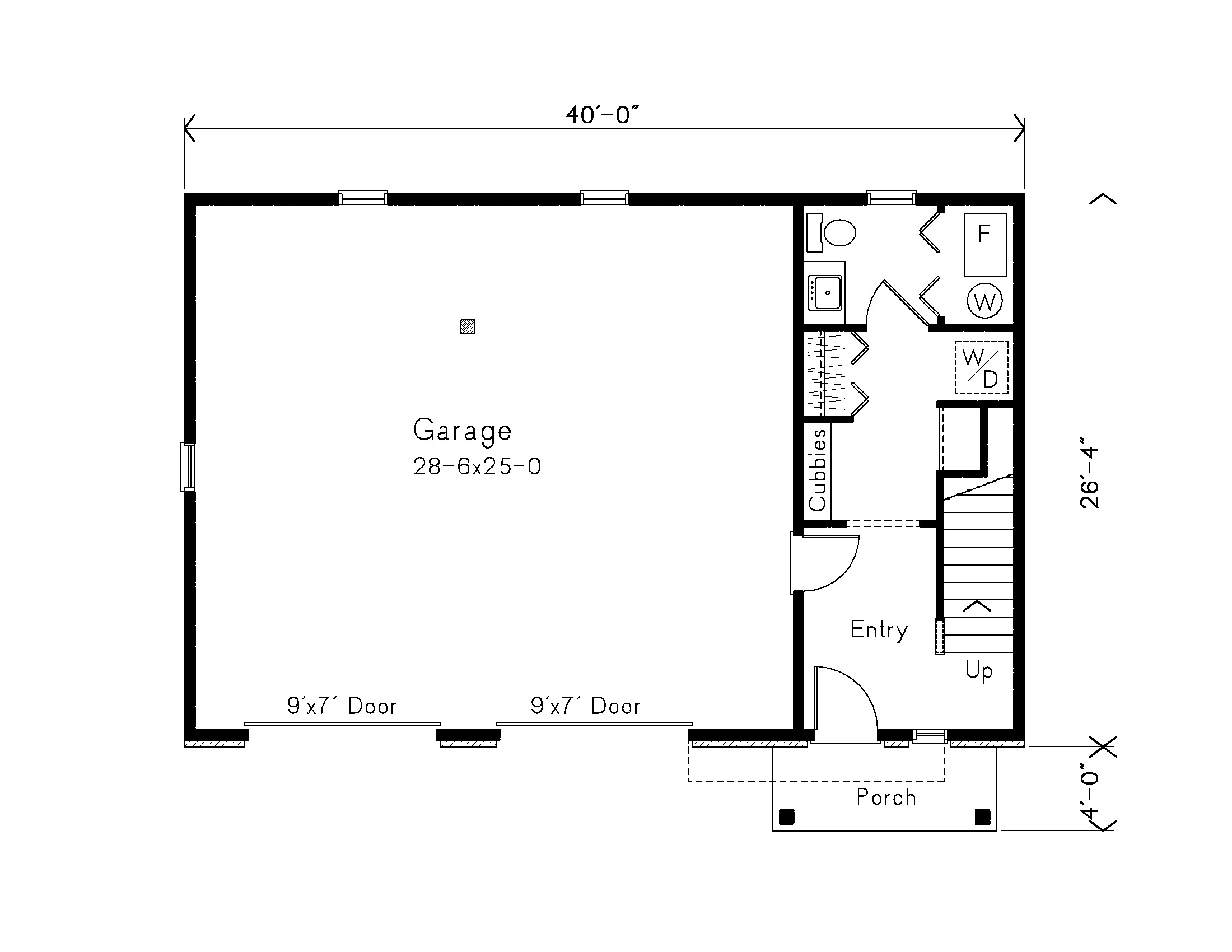

First Floor:286

Second Floor:869

Exterior Wall

2x6

Roof Framing

Truss

House Dimensions

Width: 40'0"

Depth: 30'4"

Approx. Height: 25'6"

Roof Pitch

12/12 Main Roof

10/12 Front Gable

4/12 Shed Roof

Ceiling Height

First Floor 9-0

Second Floor 8-0

Features

Foundation

Footing and Foundation Wall

Garage

Two car
Front-entry
Garage Apartment

Bedroom Features

Upstairs master bedroom
Walk-in closet

Interior Features

Laundry
Open floor plan

Exterior Features

Covered front porch

Special Features

Fireplace
