Plan 2807

Home Shop1-4Plan 2807
Enlarge Images

Plan 2807

$0.00

Plan Package Info Click Here

Please review our shipping options before choosing a shipping method. Shipping is calculated per plan, and not per total order.

Need plans faster? Consider our PDF or CAD options. You’ll receive the plans faster, and there is no shipping charge.

Categories: 1-4, 2x6-2 ($75), CARRIAGE HOUSES, ML-3 ($70), RRR-2 ($75).
Share
  • Description

Description

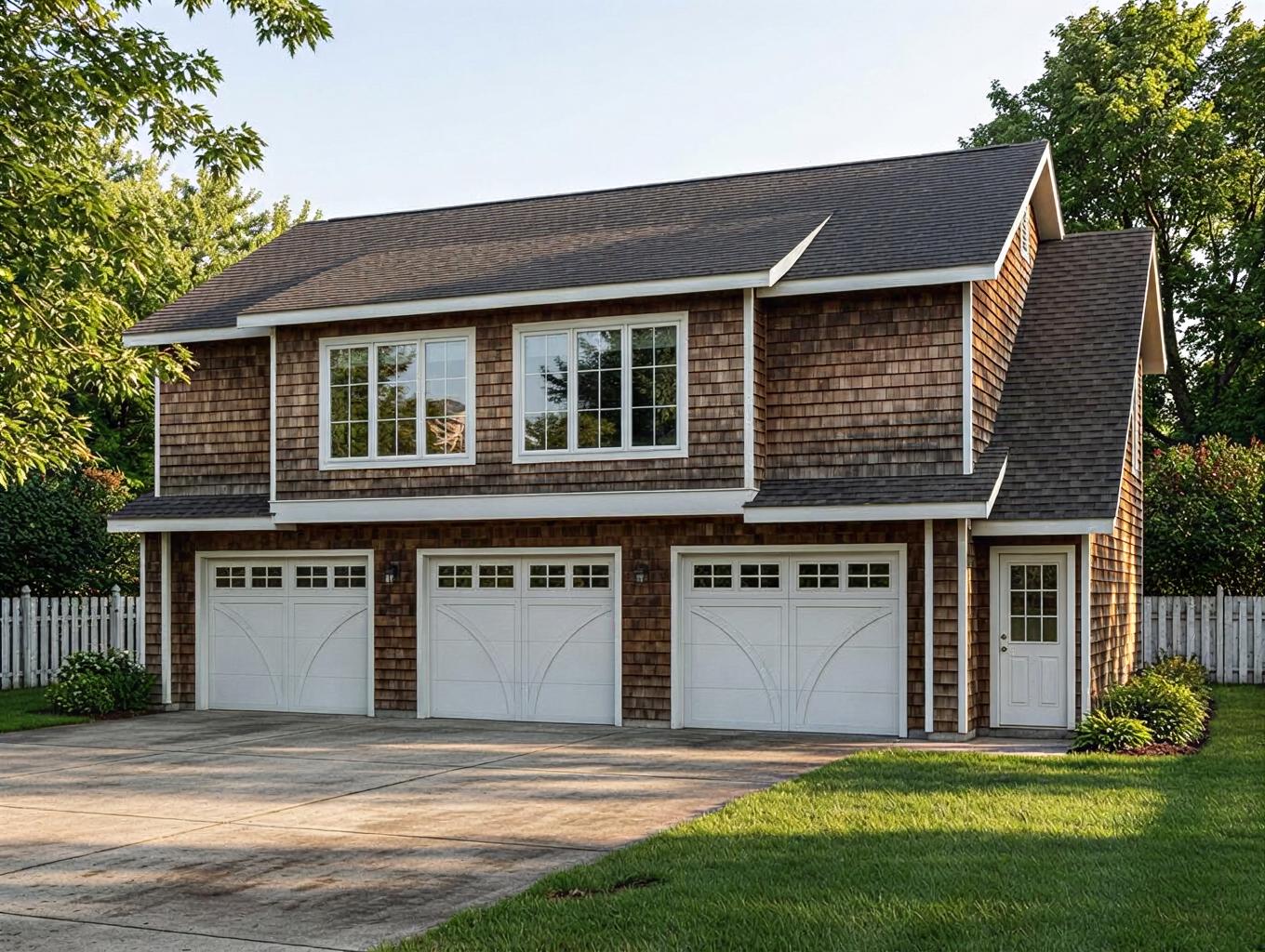

Three car garage apartment features two bedrooms and a large open living space.

Details

Beds

1

Sqft

1128

Baths Full

2

Levels

2

Sqft Floors

Second Floor:1128

Exterior Wall

2x4

Roof Framing

Truss

House Dimensions

Width: 42'0"

Depth: 28'0"

Approx. Height: 26'0"

Roof Pitch

7/12 Main

5.5/12 Shed Roof

Ceiling Height

First Floor 8-0

Second Floor 8-0

Features

Foundation

Footing and Foundation Wall

Garage

Three car+
Front-entry
Garage Apartment

Bedroom Features

Upstairs master bedroom
Walk-in closet

Kitchen Features

Breakfast area/nook

Interior Features

Laundry
Open floor plan
