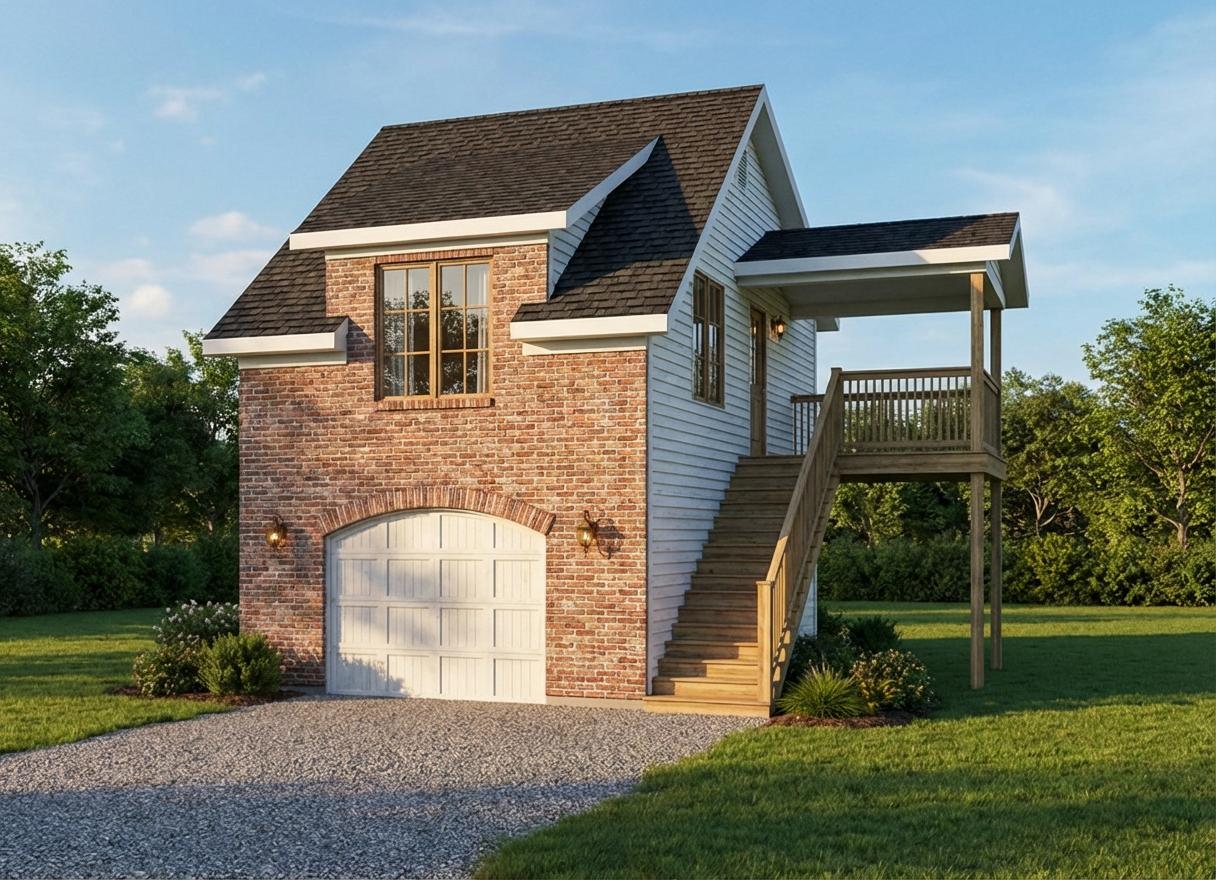

Plan 2803

Home Shop1-4Plan 2803
Enlarge Images

Plan 2803

$0.00

Plan Package Info Click Here

Please review our shipping options before choosing a shipping method. Shipping is calculated per plan, and not per total order.

Need plans faster? Consider our PDF or CAD options. You’ll receive the plans faster, and there is no shipping charge.

Categories: 1-4, 2x6-2 ($75), CARRIAGE HOUSES, ML-3 ($70), RRR-2 ($75).
Share
  • Description

Description

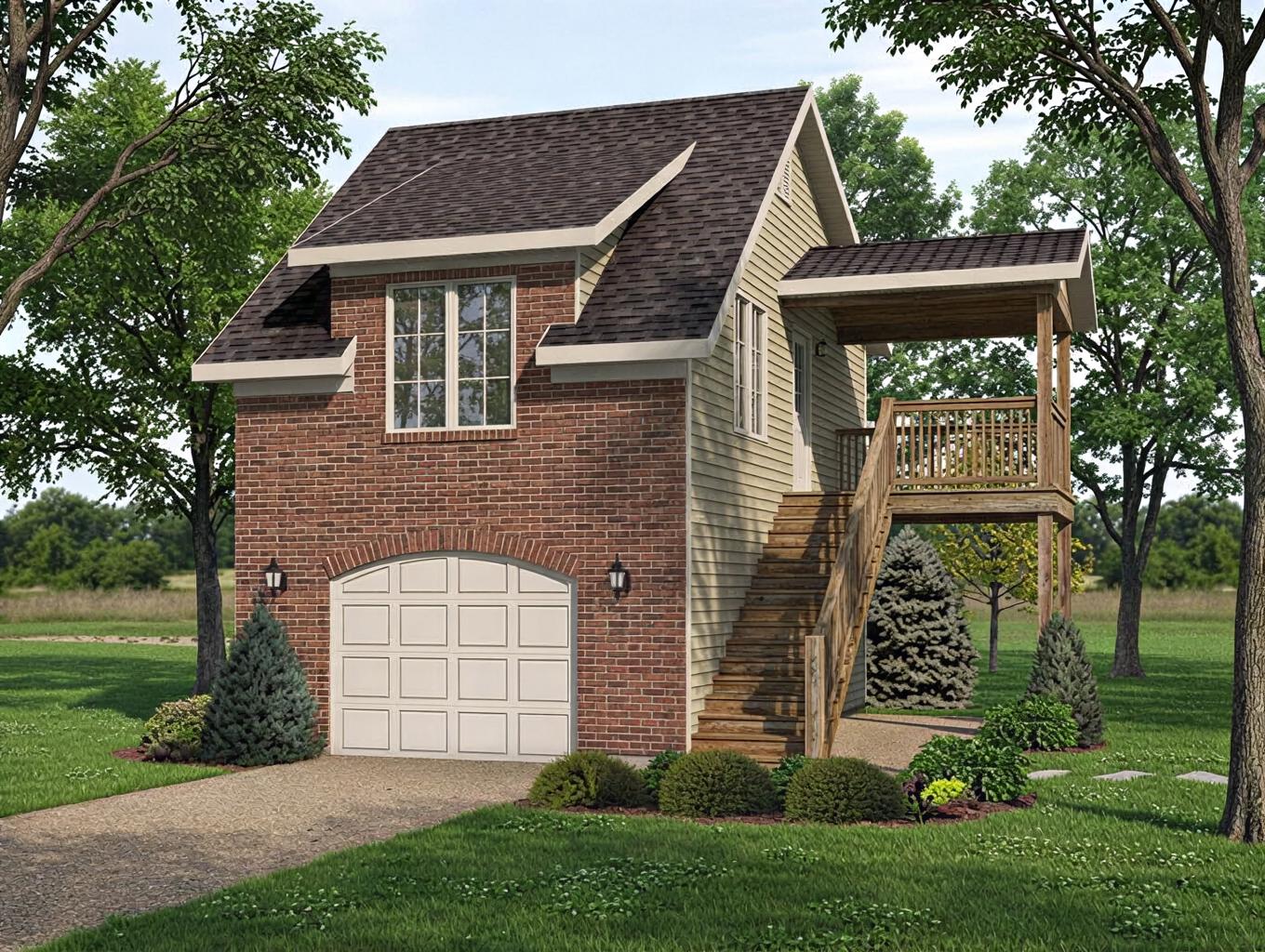

Single car carriage house design well suited for an individual, rental property or couple wanting a smaller home.

Details

Beds

1

Sqft

598

Baths Full

1

Levels

2

Sqft Floors

First Floor:100

Second Floor:498

Exterior Wall

2x4

Roof Framing

Truss

House Dimensions

Width: 28'0"

Depth: 30'4"

Approx. Height: 25'6"

Roof Pitch

5/12 Rear Main

10/12 Front Main

6/12 Shed Dormer

Ceiling Height

First Floor 8-0

Second Floor 8-0

Features

Foundation

Footing and Foundation Wall

Garage

One car
Front-entry
Garage Apartment

Bedroom Features

Upstairs master bedroom
