Plan 202406

Home Shop1-8Plan 202406

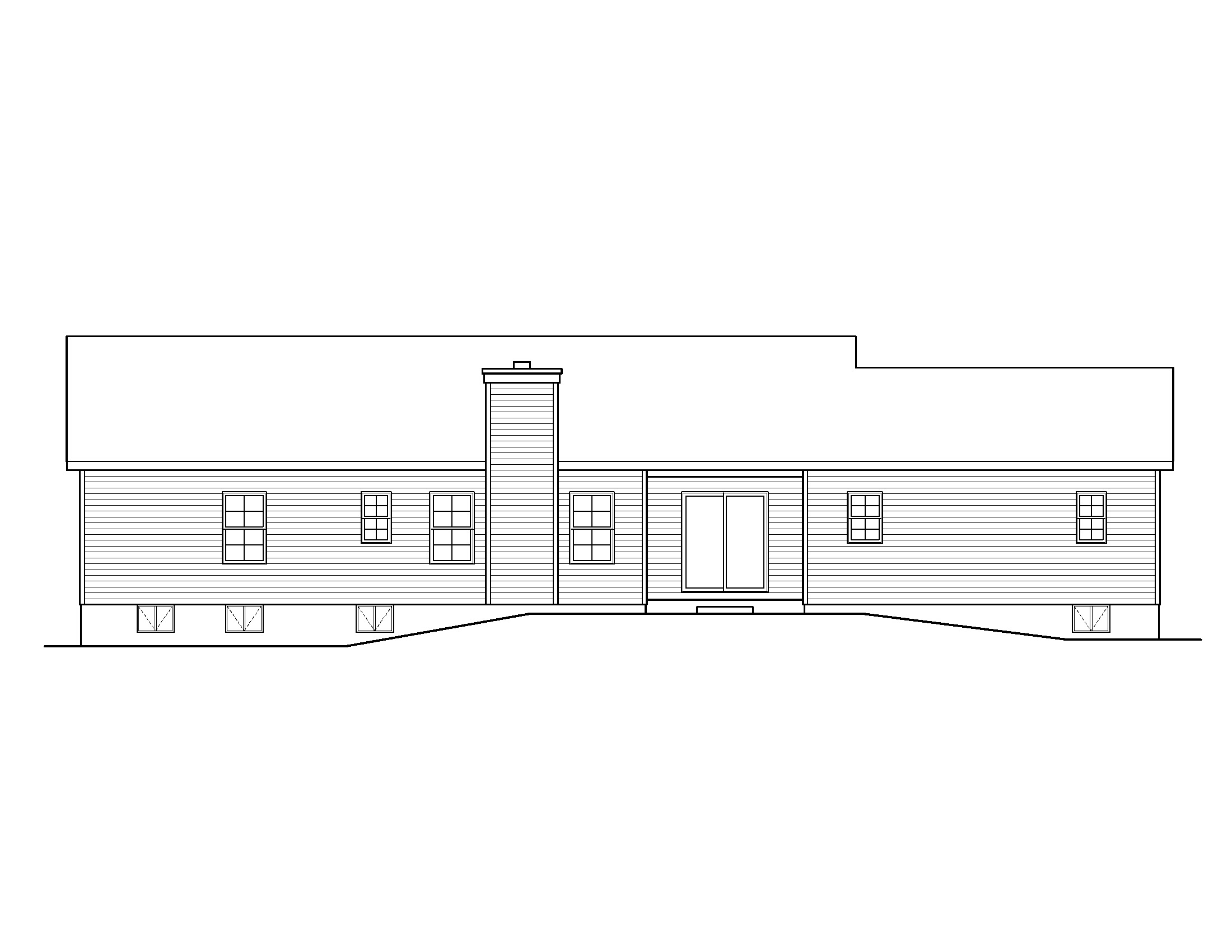

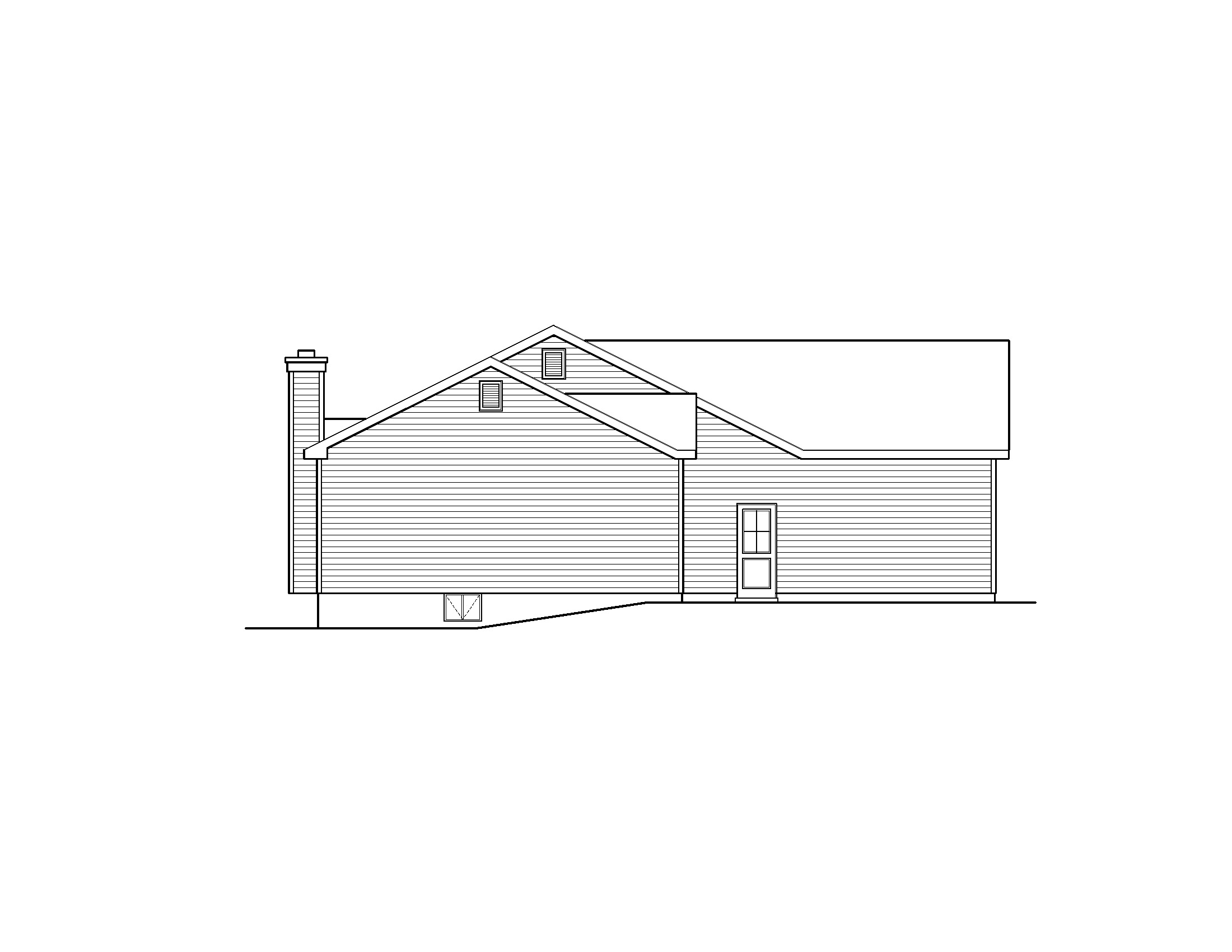

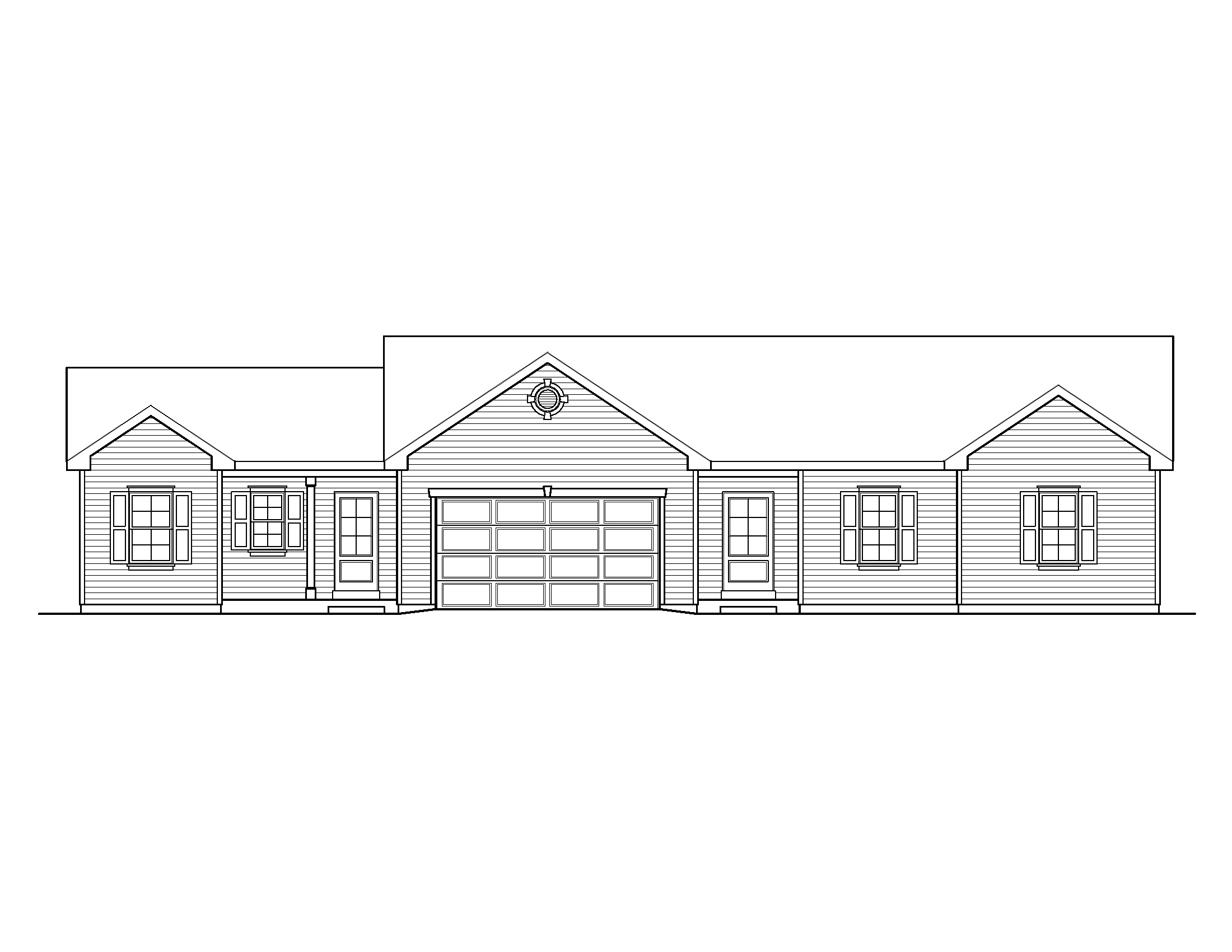

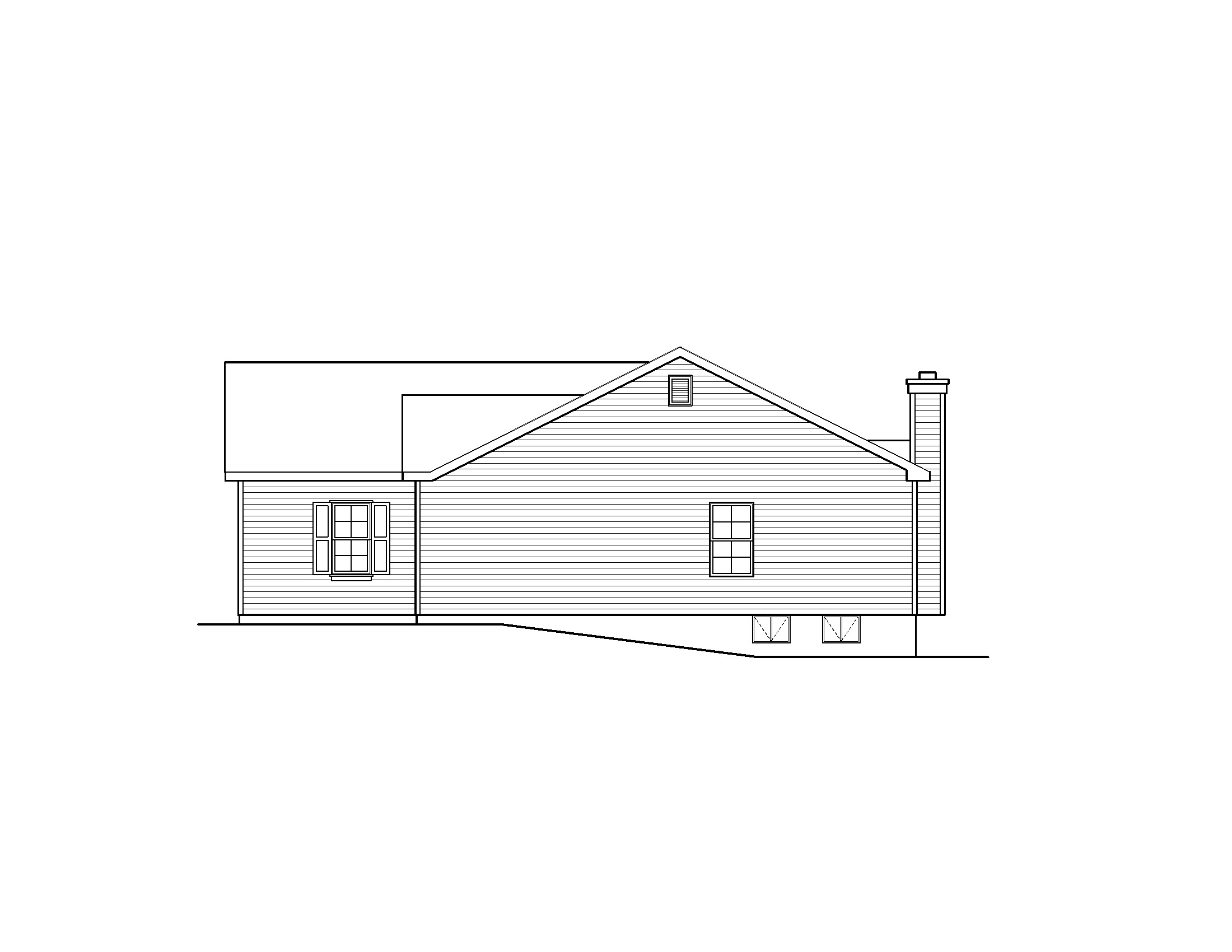

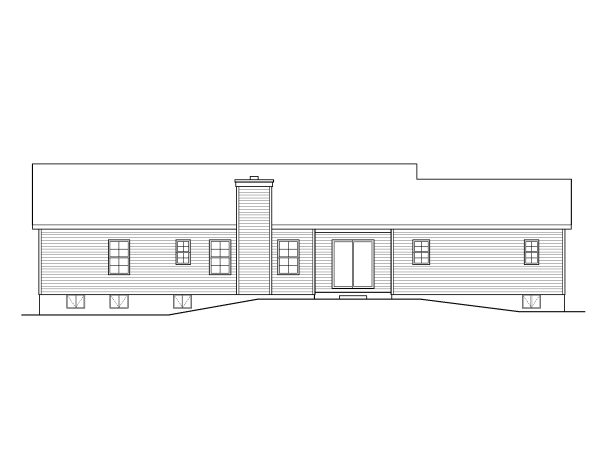

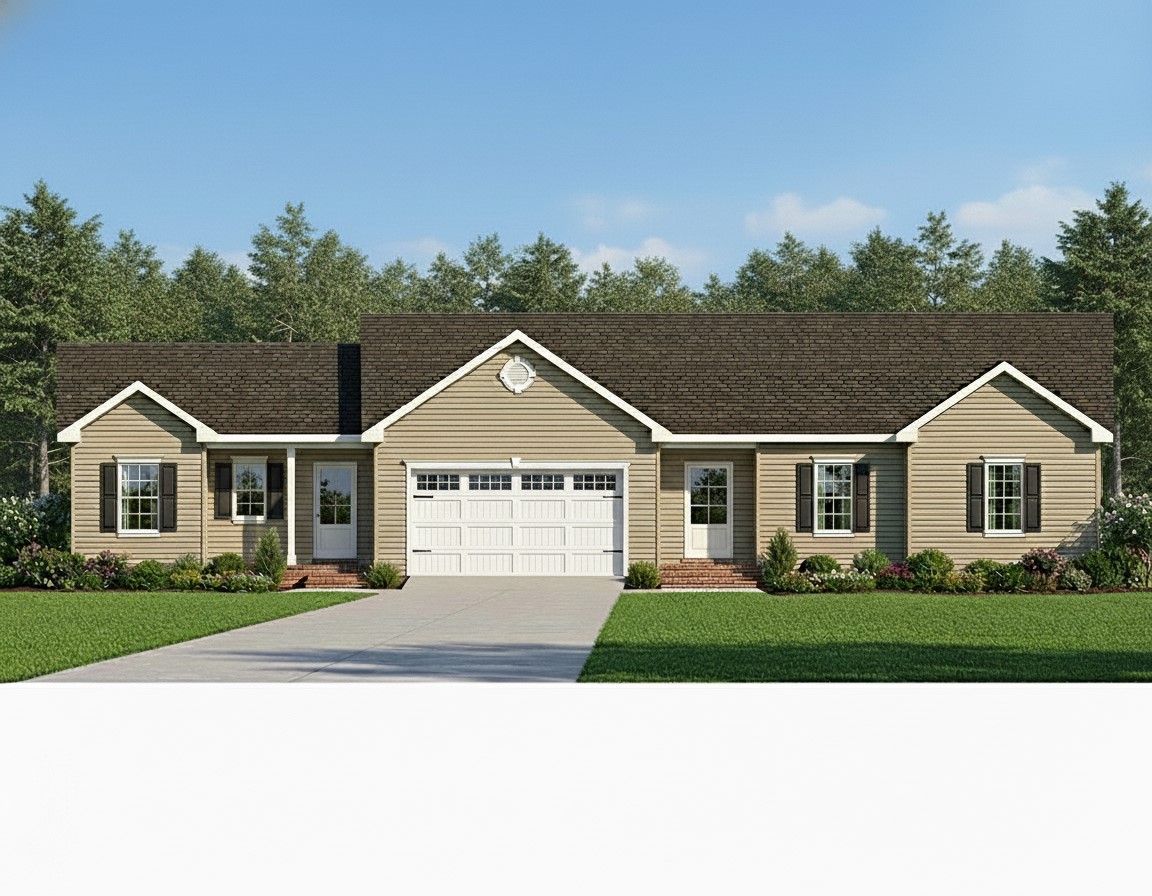

Plan 202406
Plan 202406 - Image 2
Plan 202406 - Image 3
Plan 202406 - Image 4
Plan 202406 - Image 5
Enlarge Images

Plan 202406

$0.00

Spacious Ranch plan has a separate suite for In-Laws, Parents, Guests, or a Home Office.

Plan Package Info Click Here

Please review our shipping options before choosing a shipping method. Shipping is calculated per plan, and not per total order.

Need plans faster? Consider our PDF or CAD options. You’ll receive the plans faster, and there is no shipping charge.

Categories: 1-8, 2x6-4 ($125), ML-4 ($80), ML-6 ($100), RRR-4 ($125), Traditional Ranch Houses.
Share
  • Description

Description

Spacious Ranch plan has a separate suite for In-Laws, Parents, Guests, or a Home Office.

Details

Beds

4

Sqft

2137

Baths Full

3

Baths Half

1

Levels

1

Sqft Floors

First Floor:2137

Exterior Wall

2x4

Roof Framing

Truss

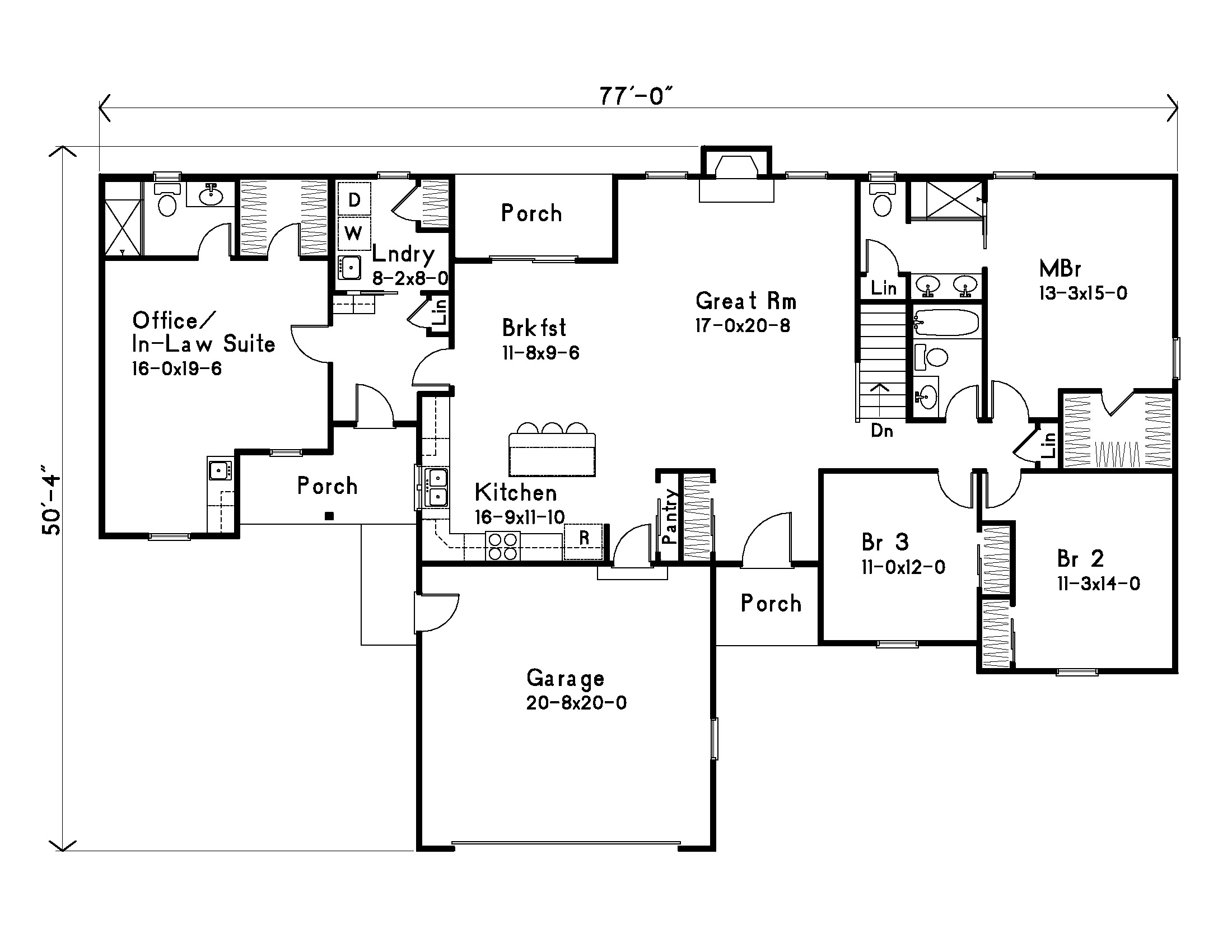

House Dimensions

Width: 77'0"

Depth: 50'4"

Approx. Height: 19'10"

Roof Pitch

6/12 Main Roof

8/12 Front Gable

Ceiling Height

First Floor 9-0

Features

Foundation

Basement

Garage

Two car
Front-entry

Bedroom Features

Main floor master bedroom
Guest/In-law suite
Two master suites
Walk-in closet

Kitchen Features

Island

Interior Features

Great room
Laundry
Open floor plan

Exterior Features

Covered rear porch
Covered front porch

Special Features

Fireplace
