Plan 202403

Home Shop1-6Plan 202403

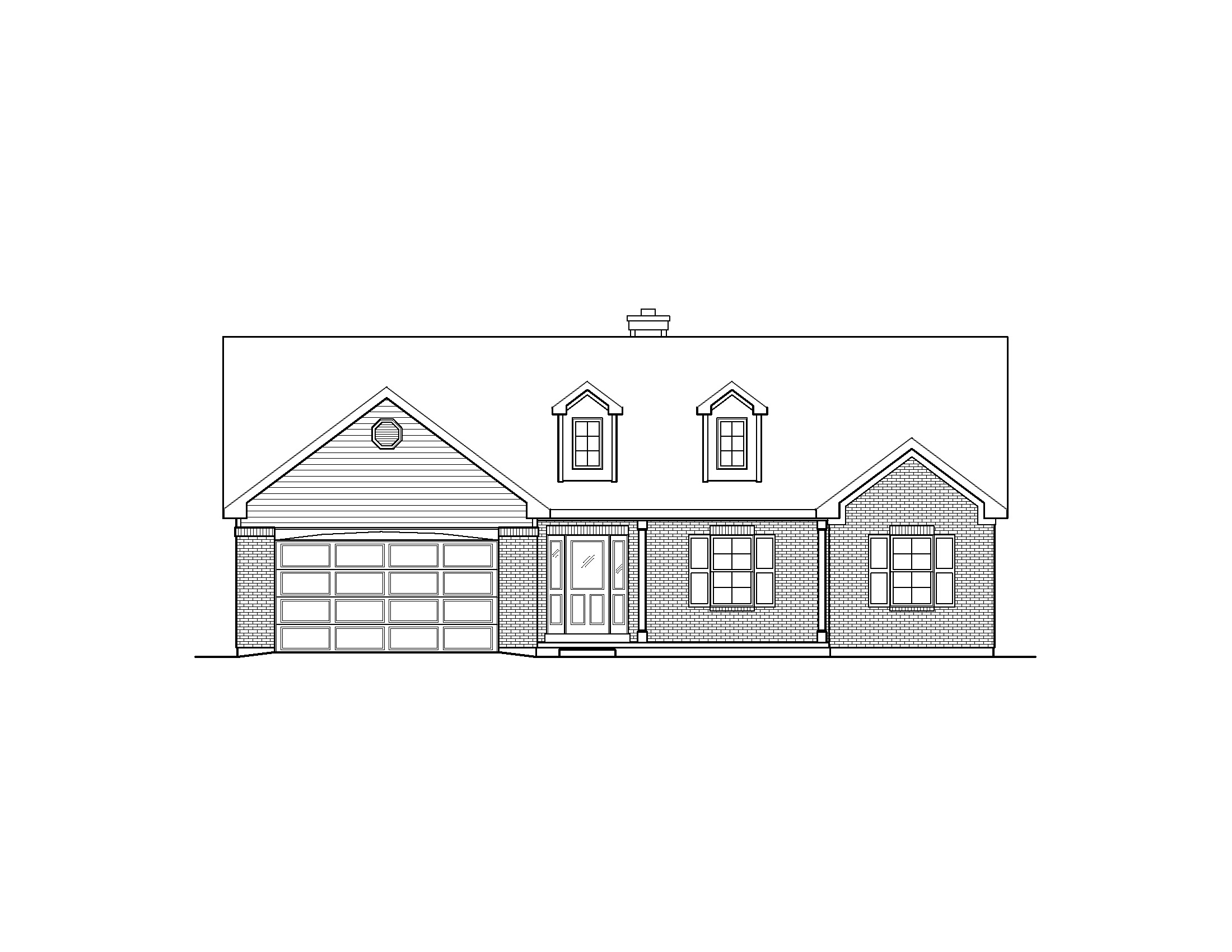

Plan 202403

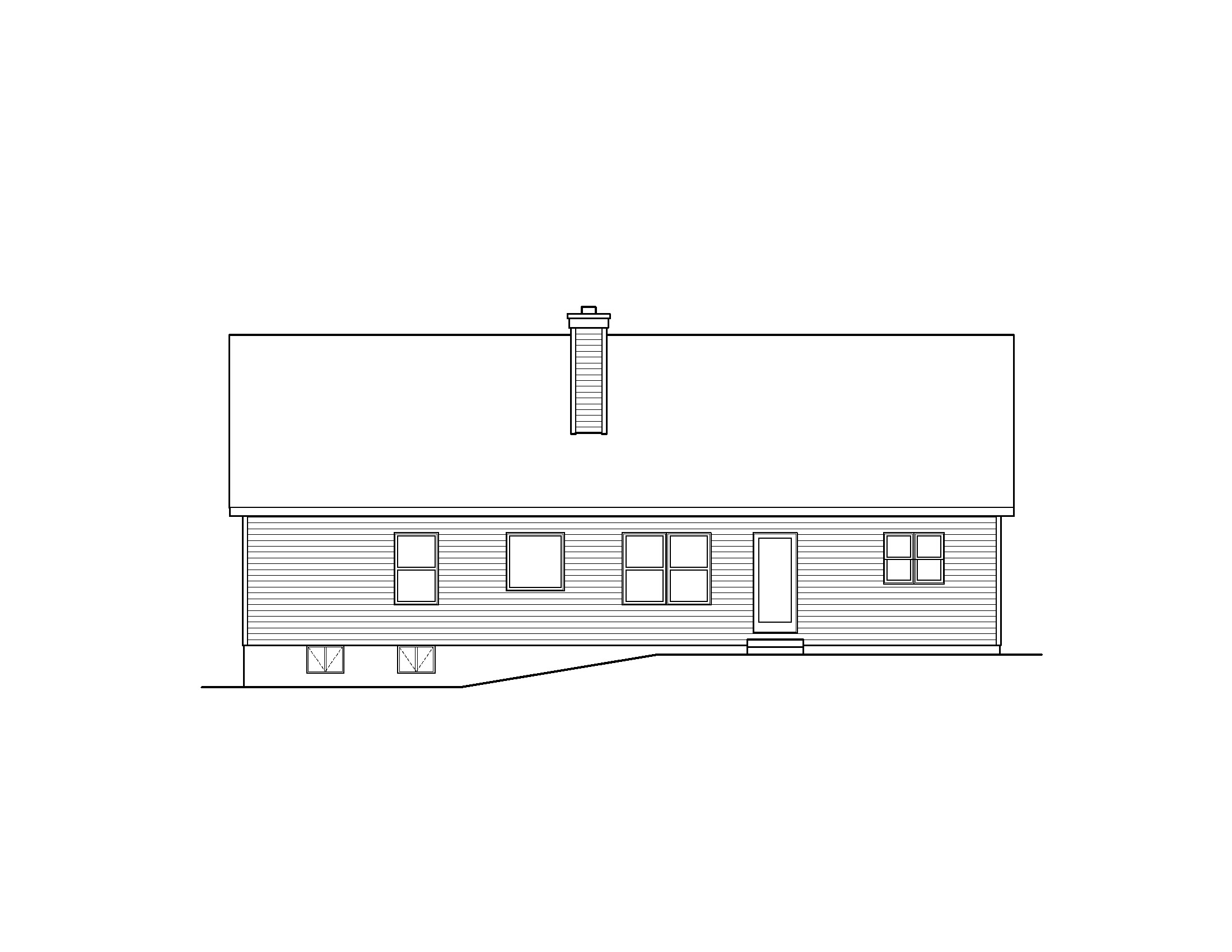

Plan 202403 - Image 2

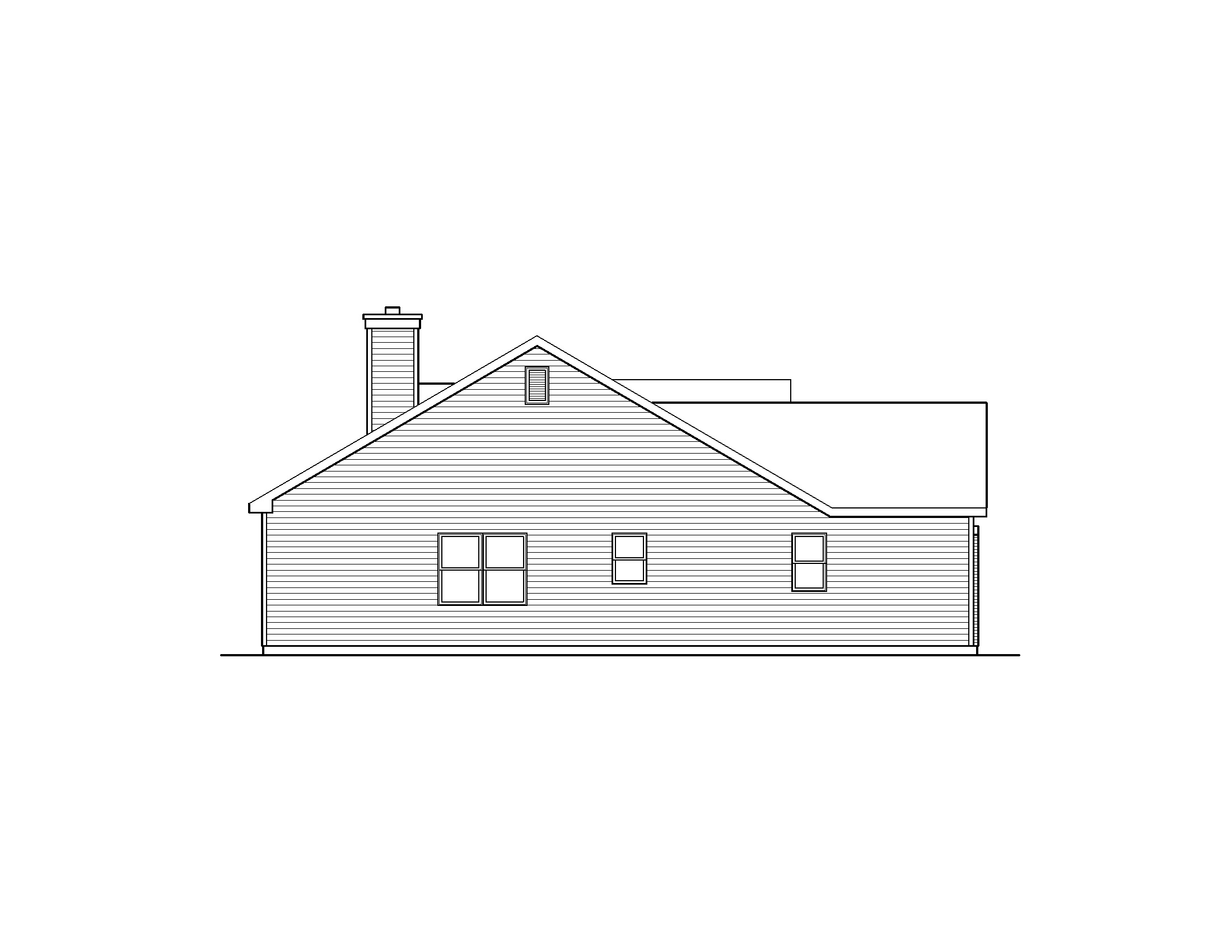

Plan 202403 - Image 3

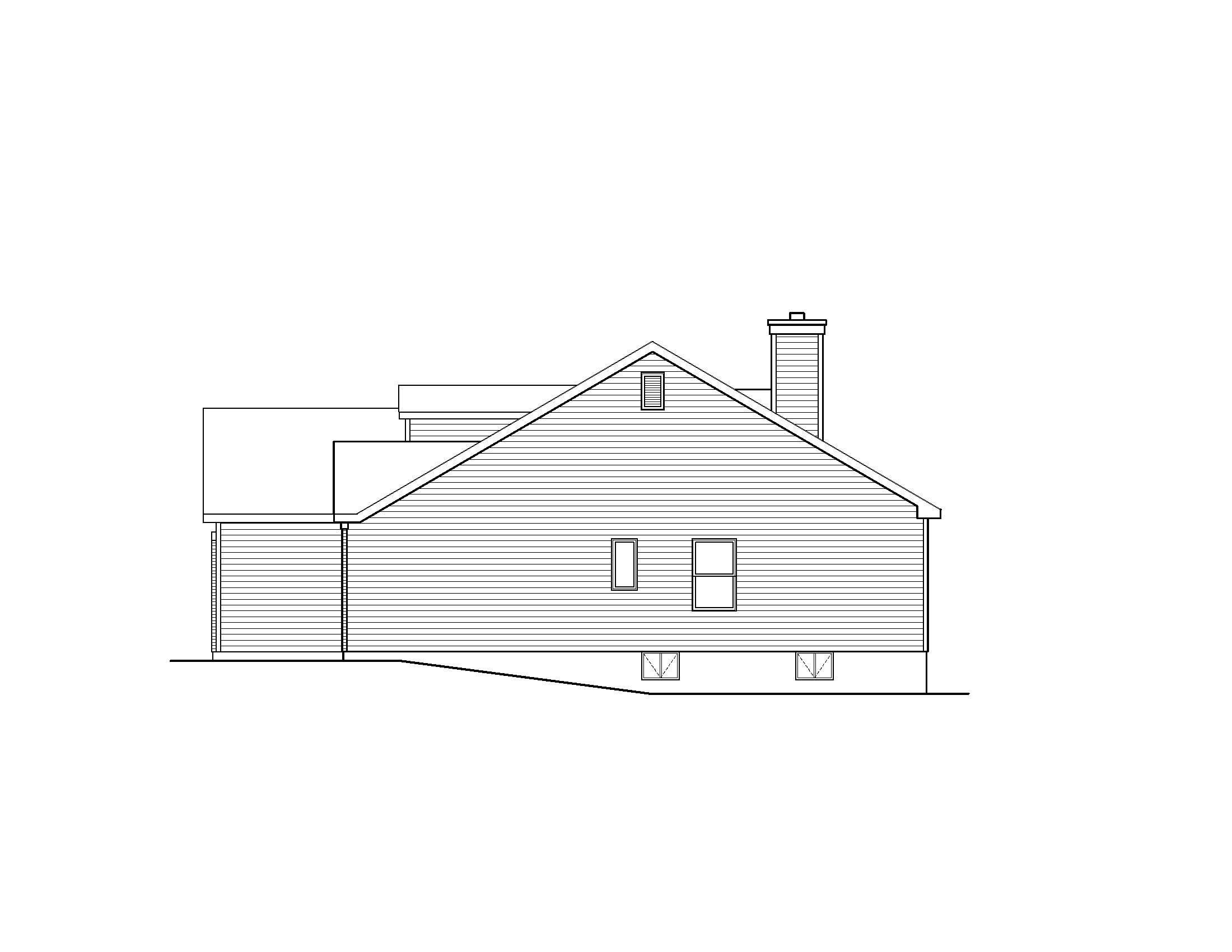

Plan 202403 - Image 4
Plan 202403 - Image 5
Enlarge Images

Plan 202403

$0.00

Ranch style plan designed with affordability, function and curb appeal in mind.

Plan Package Info Click Here

Please review our shipping options before choosing a shipping method. Shipping is calculated per plan, and not per total order.

Need plans faster? Consider our PDF or CAD options. You’ll receive the plans faster, and there is no shipping charge.

Categories: 1-6, 2x6-2 ($75), ML-4 ($80), RRR-2 ($75), Traditional Ranch Houses.
Share
  • Description

Description

Ranch style plan designed with affordability, function and curb appeal in mind.

Details

Beds

3

Sqft

1829

Baths Full

3

Baths Half

1

Levels

1

Sqft Floors

First:1829

Exterior Wall

2x4

Roof Framing

Truss

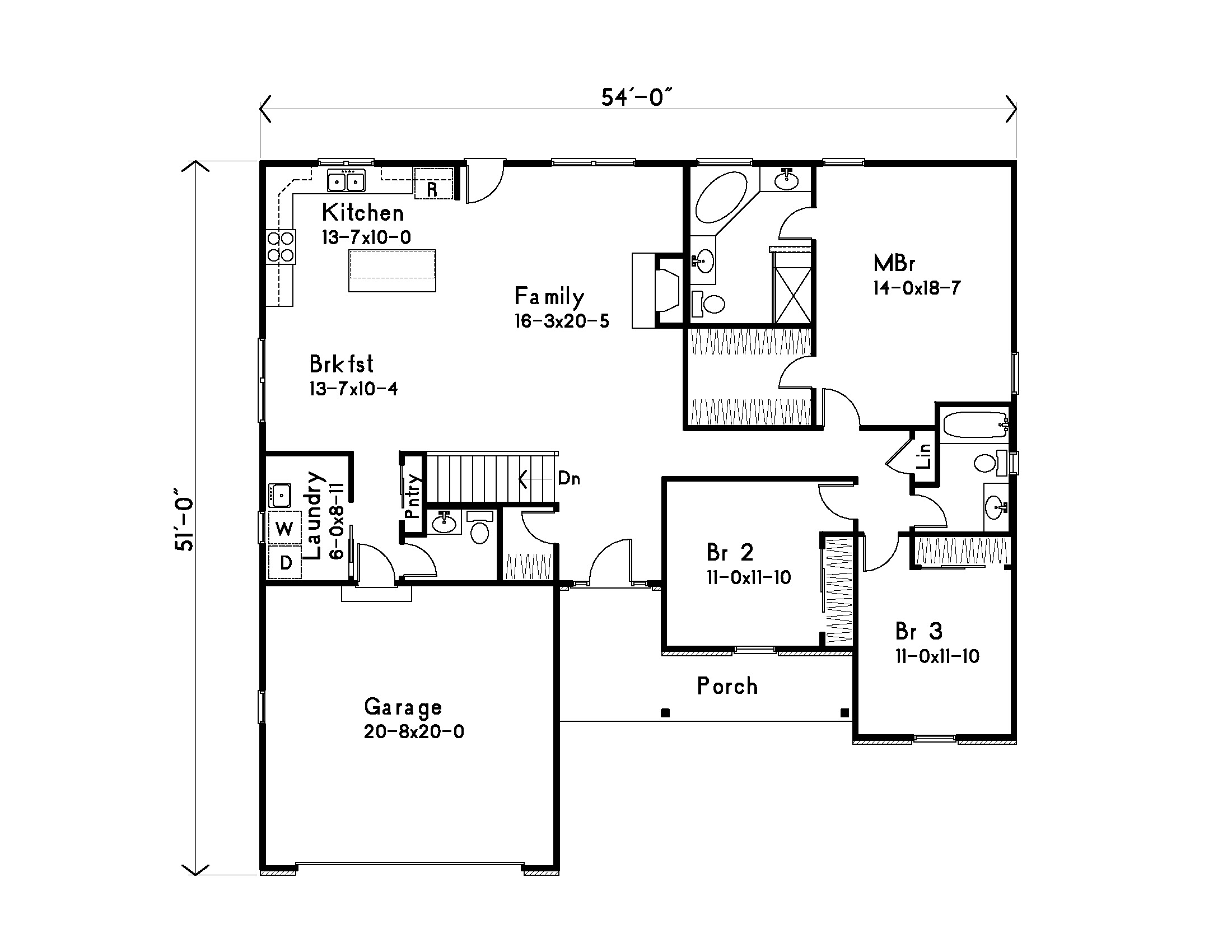

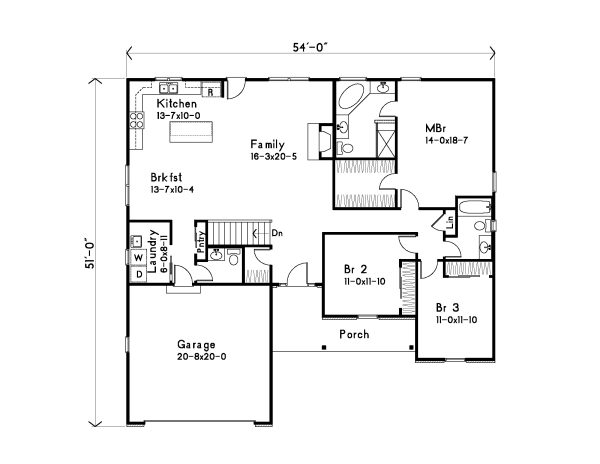

House Dimensions

Width: 54'0"

Depth: 51'0"

Approx. Height: 22'11"

Roof Pitch

7/12 Main Roof

9/12 Front Gable

Ceiling Height

First Floor 9-0

Features

Foundation

Basement

Garage

Two car
Front-entry

Bedroom Features

Main floor master bedroom
Walk-in closet

Kitchen Features

Island
Walk-in Pantry

Interior Features

Laundry
Open floor plan
Family room

Exterior Features

Covered front porch

Special Features

Fireplace
