Plan 202301

Home Shop1-6Plan 202301

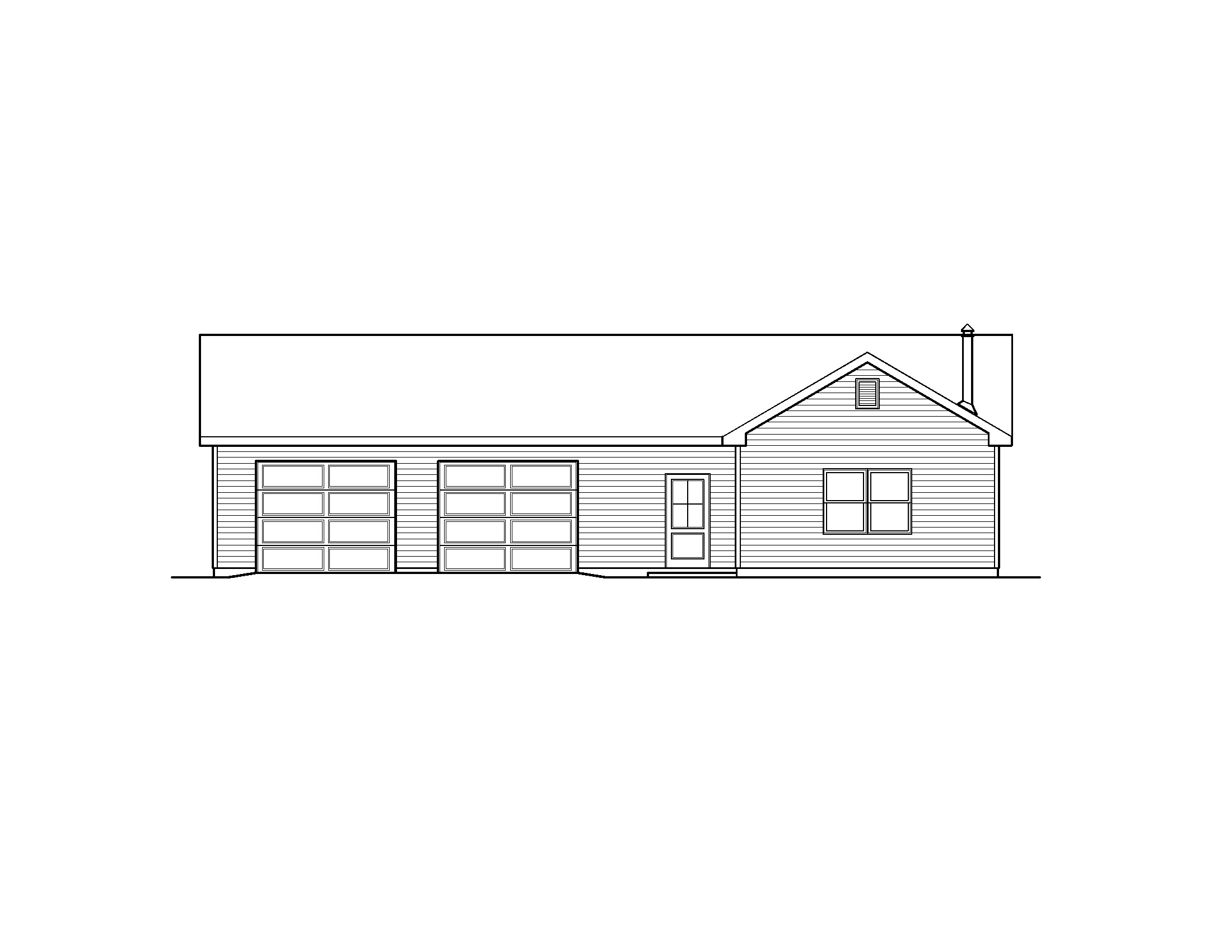

Plan 202301
Plan 202301 - Image 2
Plan 202301 - Image 3
Plan 202301 - Image 4

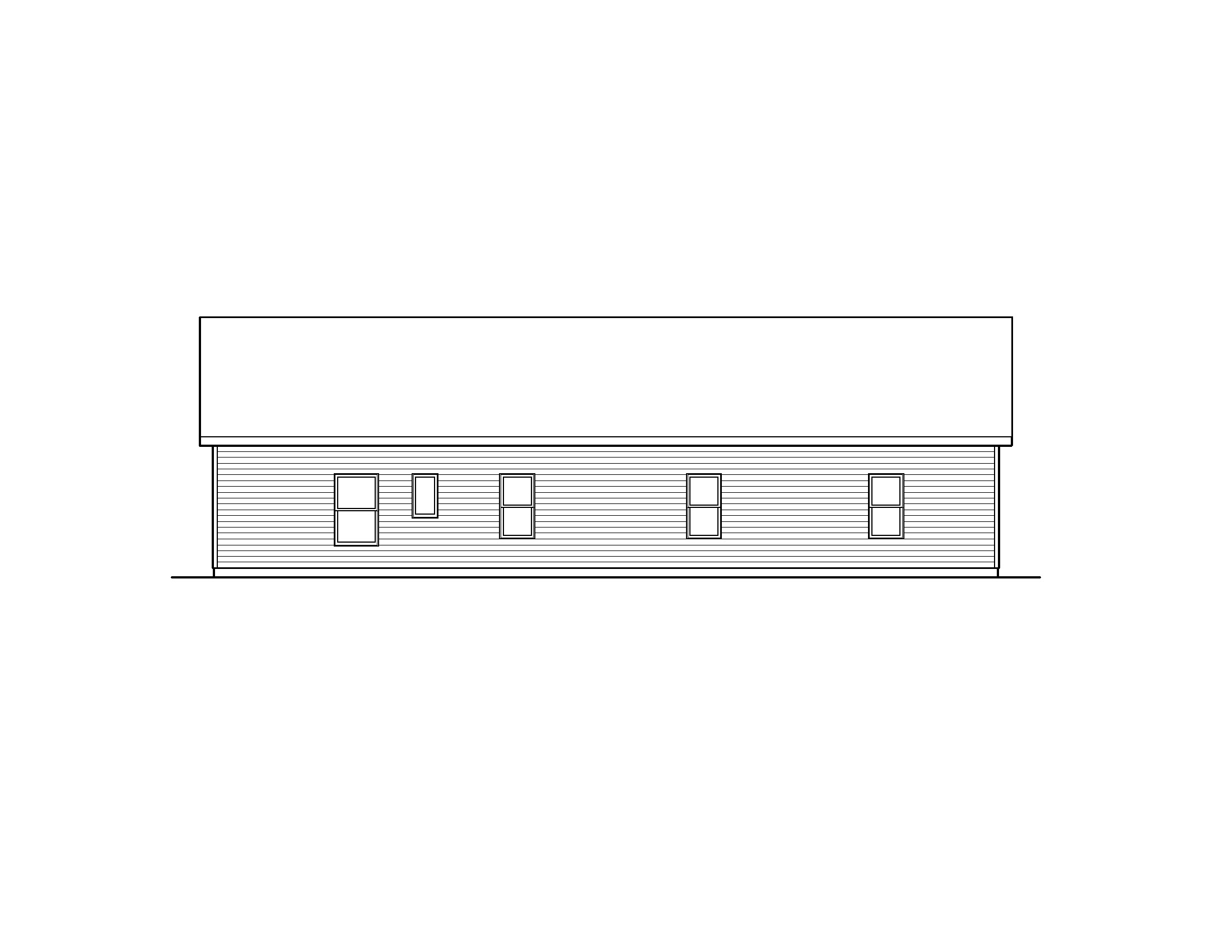

Plan 202301 - Image 5
Enlarge Images

Plan 202301

$0.00

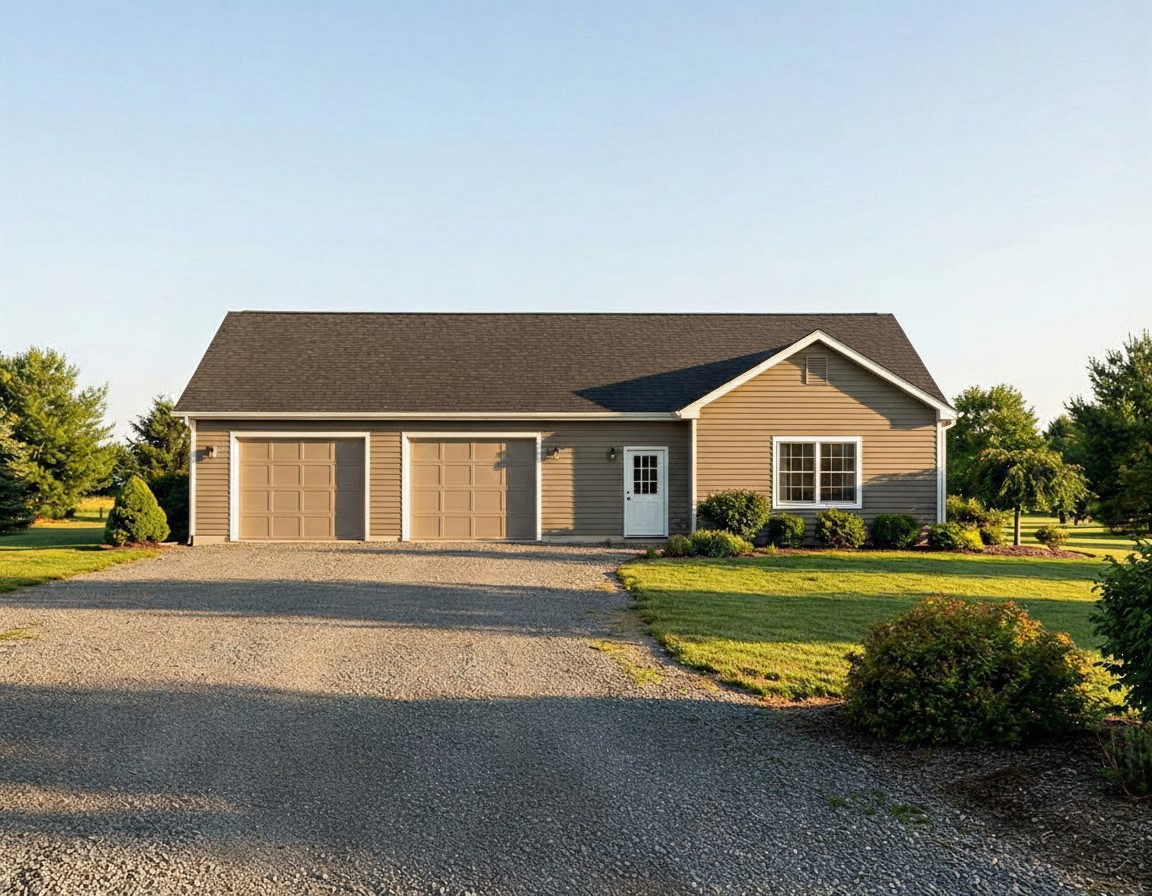

Single story garage apartment features a wood burning stove in the sitting room, roomy living quarters and an over-size garage.

Plan Package Info Click Here

Please review our shipping options before choosing a shipping method. Shipping is calculated per plan, and not per total order.

Need plans faster? Consider our PDF or CAD options. You’ll receive the plans faster, and there is no shipping charge.

Categories: 1-6, 2x6-2 ($75), CARRIAGE HOUSES, ML-4 ($80), RRR-2 ($75).
Share
  • Description

Description

Single story garage apartment features a wood burning stove in the sitting room, roomy living quarters and an over-size garage.



Details

Beds

1

Sqft

996

Baths Full

1

Levels

1

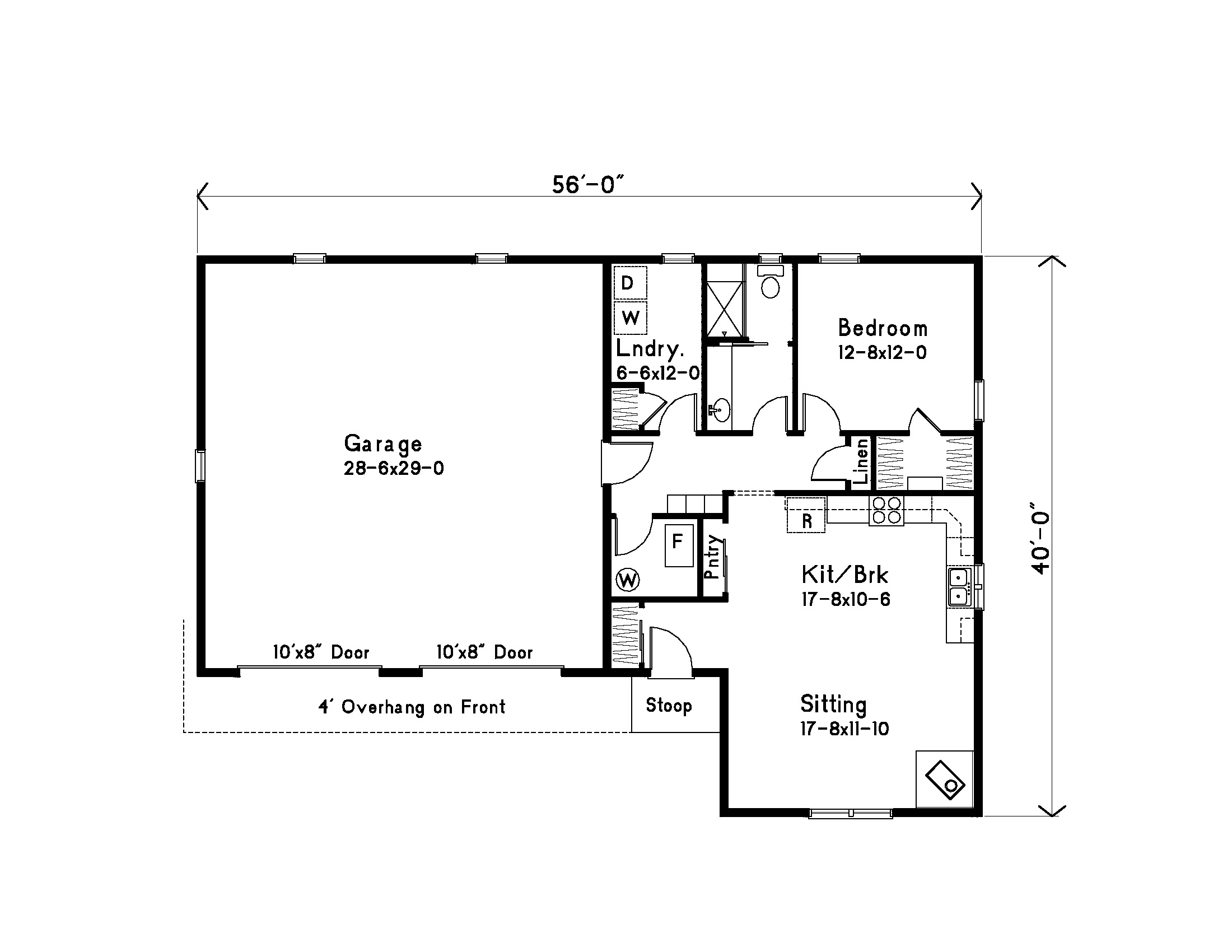

Sqft Floors

First Floor:996

Exterior Wall

2x6

Roof Framing

Truss

House Dimensions

Width: 56'0"

Depth: 40'0"

Approx. Height: 17'5"

Roof Pitch

5/12 Main Roof

7/12 Front Gable

Ceiling Height

First Floor 9-0

Features

Foundation

Slab on Grade

Garage

Two car
Workshop/storage
Front-entry
Garage Apartment

Bedroom Features

Main floor master bedroom
Walk-in closet

Kitchen Features

Breakfast area/nook

Interior Features

Laundry
Open floor plan

Exterior Features

Covered front porch

Special Features

Fireplace

Similar Plans

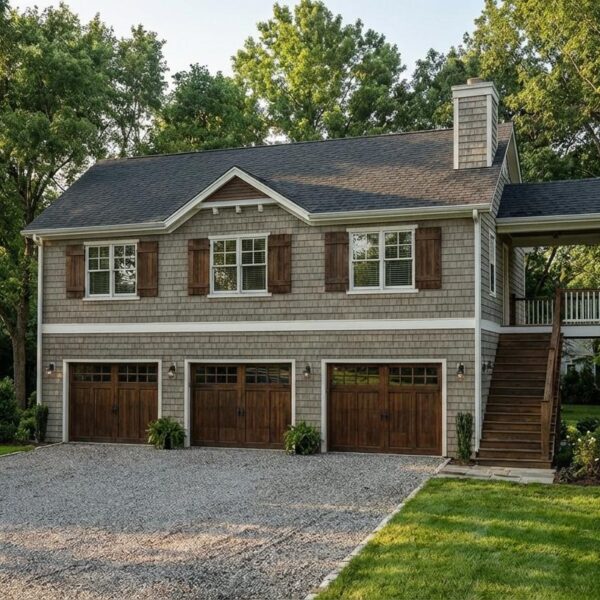

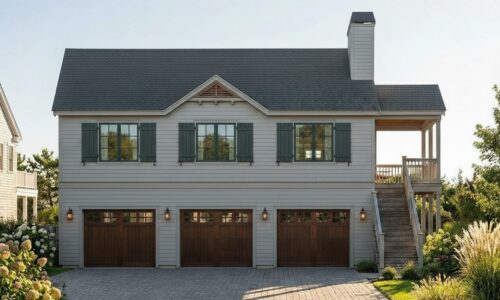

Plan 1809
